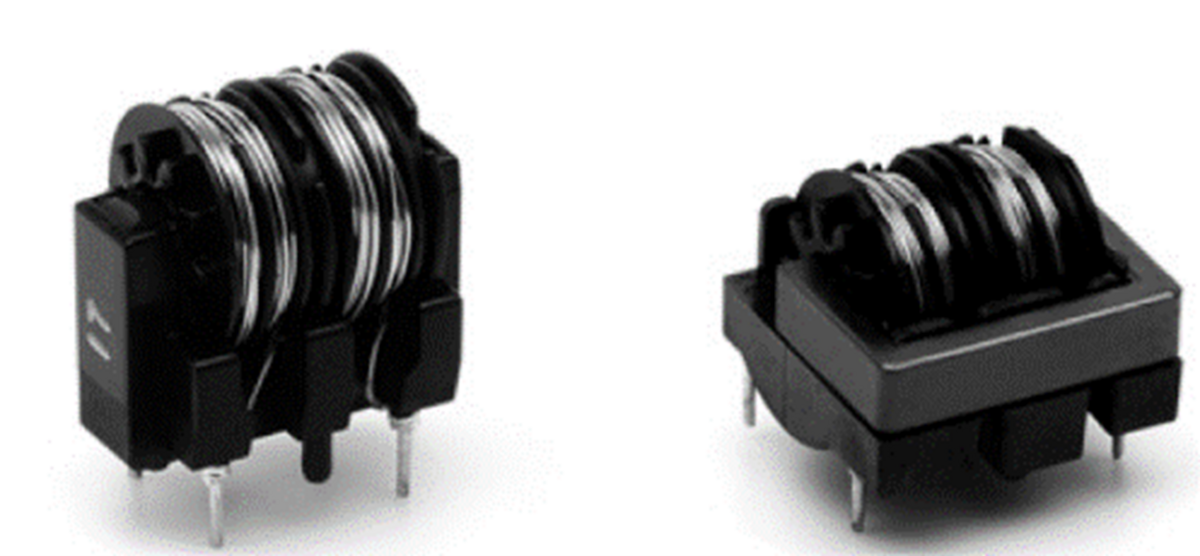

In this document, Vinod Chellat Markose explains an indirect method for measuring the drop in inductance of a CMC at any current using a Bode 100 vector network analyzer.

This measurement is necessary because most CMC datasheets lack inductance data versus differential mode current.
In real-world CMCs, the magnetic core can approach saturation due to differential mode inductance and current, reducing core permeability and, consequently, common mode inductance. This reduction affects the CMC's ability to filter common mode noise, especially in applications with high crest factor differential mode currents.

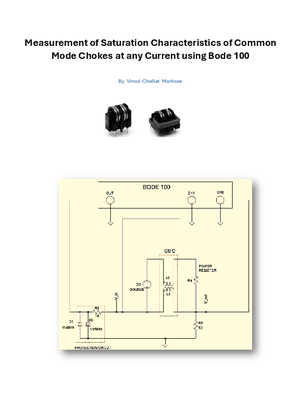

Application note: Saturation Characteristics of Common Mode Chokes

(1 MB)

Download

Questions & Feedback

We try to constantly improve our application notes and videos. To do so, we are happy to receive your valuable opinion on them. Therefore, please send us your comments and insights via the feedback form, which you can access via the button below.

Feedback

Vinod Chellat Markose is a hardware engineer with more than 21 years of experience in hardware design. He graduated with a Bachelor of Engineering in Electrical and Electronics from Visvesvaraya Technological University, India, in 2002. Vinod has worked as a Power Electronics design engineer in industries like Renewable energy, Automotive, Consumer Electronics, and Oil & Gas. He is passionate about analogue electronics, magnetic design, circuit simulations, EMC and protection circuit design with emphasis on robustness to surge. Vinod enjoys spending extensive time with physical components, analyzing the gap between ideal and real-life component behaviors. Since 2019, he has offered Electronic design consultancy services in Power Electronics and low-power analog (both in product design and root-cause analysis of mass failures). Vinod enjoys involving himself in spiritual and humanitarian activities in his free time.
