Passive Filter Design with QuickFil

QuickFil is a powerful tool for the design of passive filters. This application note shows how to design and measure a bandpass filter using QuickFil and Bode 100.

QuickFil is a powerful freeware filter design software. Passive filters up to the 50th order can be calculated. In this application note it is shown how to design a passive bandpass filter with given centre frequency, passband bandwidth, passband loss and filter degree. QuickFil calculates the passive design and enables optimization of the circuit. The final circuit properties can be calculated using the circuit analysis feature of QuickFil.

Furthermore the characteristics of the bandpass filter are measured using the Bode 100. If you are interested in the capabilities of QuickFil and the filter analysis with the Bode 100 please feel free to download the following document:

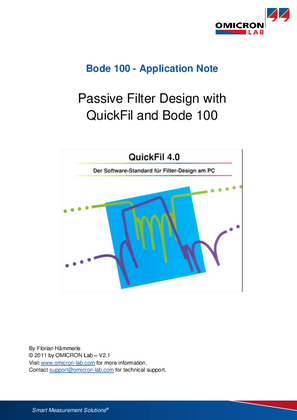

Design a passive filter using Quickfil and measure it with Bode 100

(750 KB)

Download

Questions & Feedback

We try to constantly improve our application notes and videos. To do so, we are happy to receive your valuable opinion on them. Therefore, please send us your comments and insights via the feedback form, which you can access via the button below.

Feedback

image-528

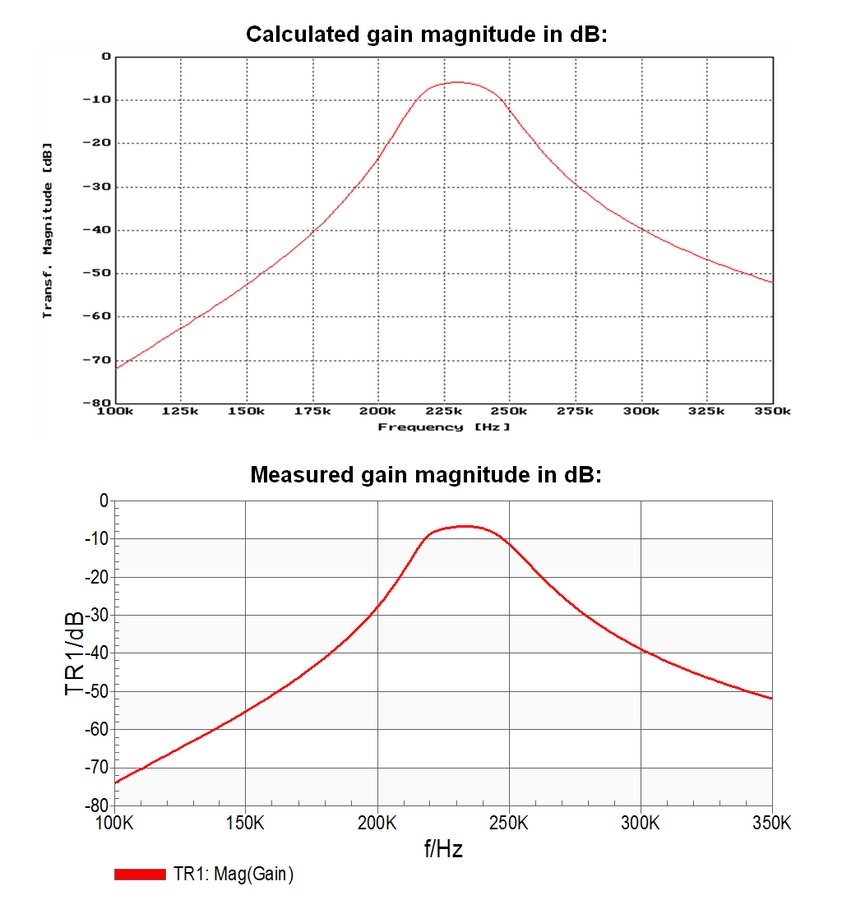

Simulated and measured bandbass filter
