Inductance Measurement of Inductors under DC bias using Bode 100

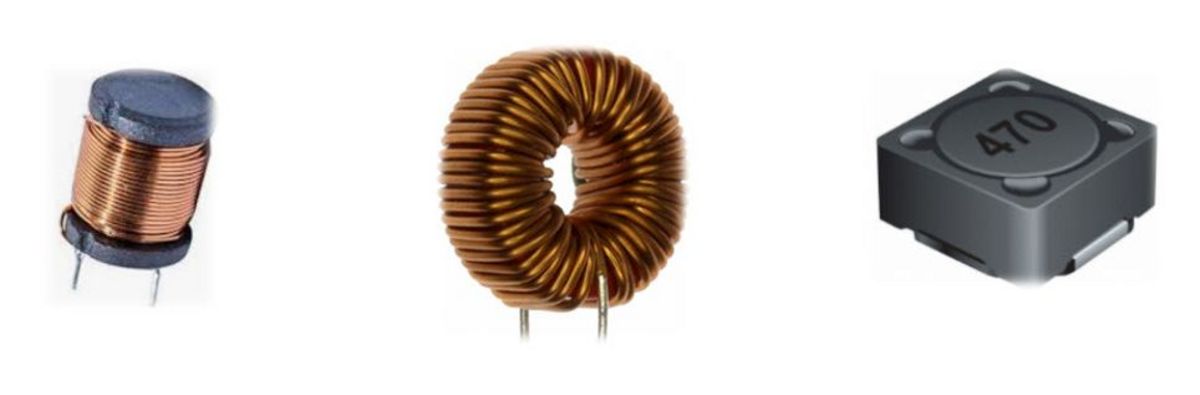

This application note describes an inexpensive method for characterizing the drop in inductance of an inductor at any desired DC bias current using the Bode 100 vector network analyzer.

The need for such a measurement is that most inductors' datasheets do not have data on inductance versus current, though some do give data on current corresponding to a 10% drop in Inductance. Likewise, information about Inductance versus frequency is usually unavailable.

The method presented here can be used to gather data on inductance versus current as well as frequency.

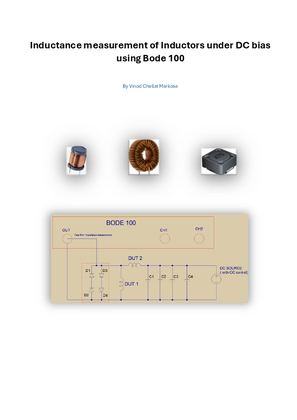

Application note: Inductance measurement of Inductors under DC bias using Bode 100
