High-Pass Filter

In this article Aris Kuball and Günther Klenner explain how to design a high-pass filter that is used to measure conducted emissions.

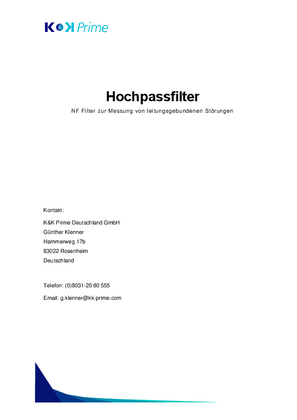

Hochpassfilter_measruement

This document discusses a real-life customer problem where a customer wanted to measure the high-frequency distortions above 150 kHz. Due to the presence of high low-frequency distortions that dominate in a SMPS, the high-frequency distortions are hard to measure. The following article shows the description and buildup of a 150 kHz high-pass filter that suppresses the low-frequency distortions making it easier to measure the high-frequency conducted emissions.

Please note that this article is only available in German language.
Dieser Artikel ist nur auf Deutsch erhältlich und kann hier heruntergeladen werden:

Questions & Feedback

We try to constantly improve our application notes and videos. To do so, we are happy to receive your valuable opinion on them. Therefore, please send us your comments and insights via the feedback form, which you can access via the button below.

Feedback

Günther Klenner
Günther Klenner is head of research & development at KK-Prime, a design house for electronics development, especially in the RF field. The field of application ranges from EMC to microwave, medical devices to component testers and antenna design to circuit support. He bases on more than 40 years of experience in the RF area from various fields of activity as a system SW engineer, project manager, product manager at Kathrein, Rohde&Schwarz, Acterna and Wireless Telecom Group before founding KK-Prime in 2009.
