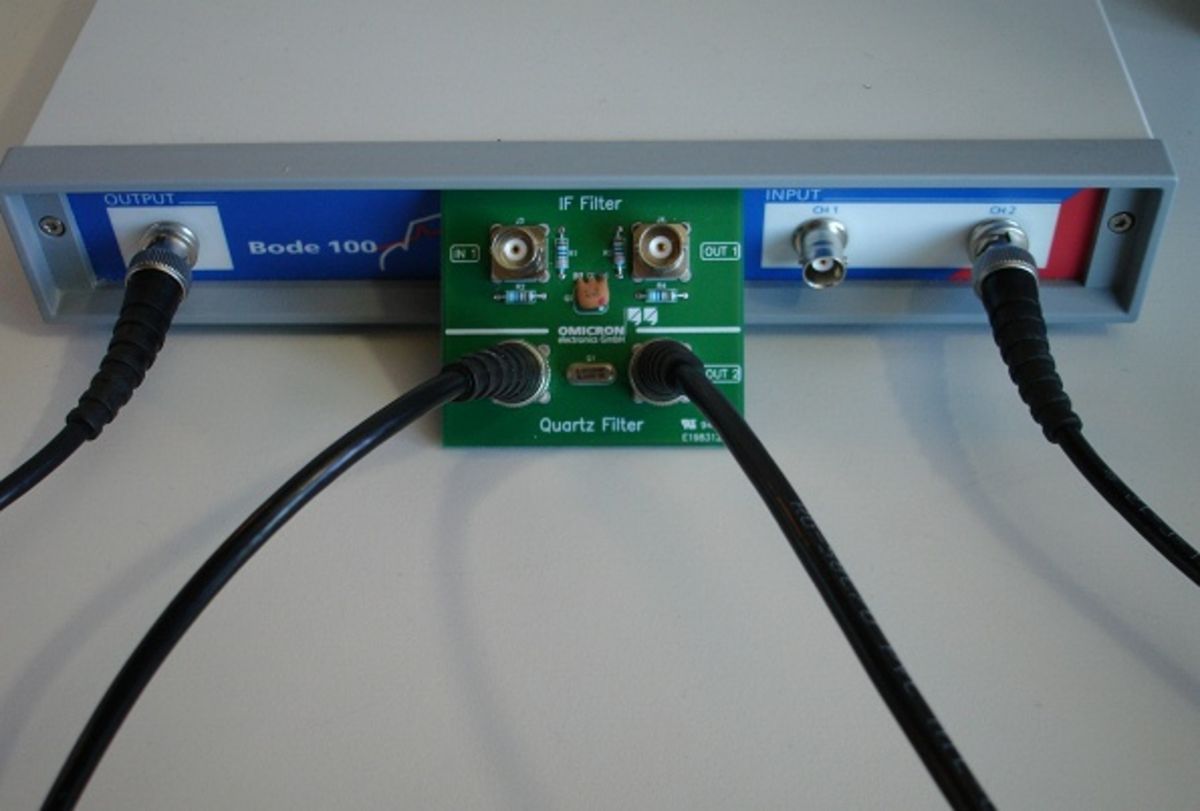

Very often it is useful to know the equivalent circuit of a certain component. This application note demonstrates a simple way to get the equivalent circuit of a quartz crystal using the Bode 100.

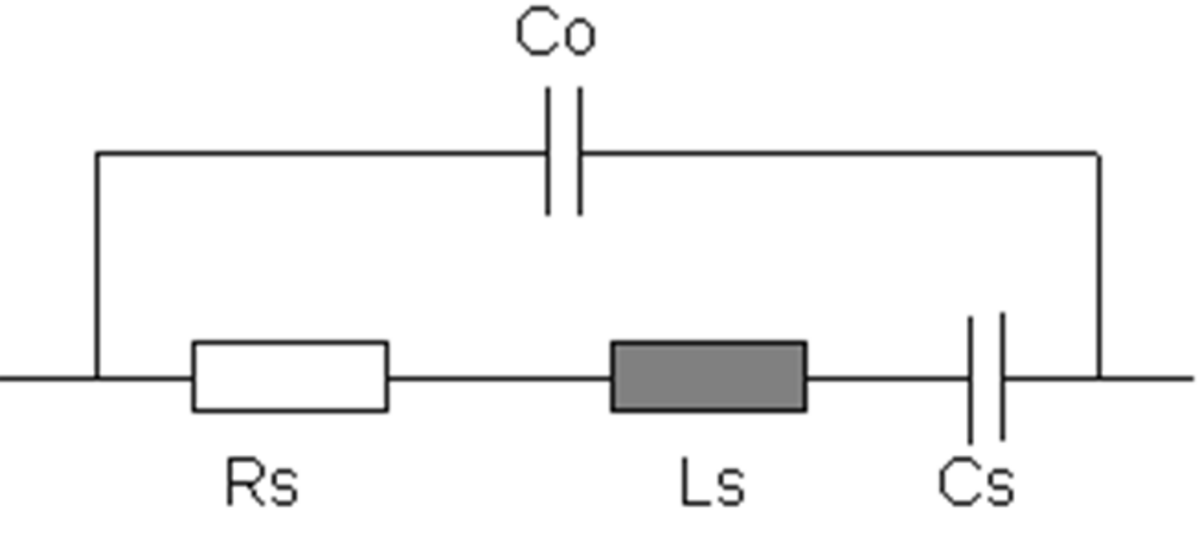

A quartz crystal can be modelled using an equivalent circuit as shown on the right hand side. This model is valid in the frequency region of a single series - parallel resonance combination. These series – parallel resonance combination occurs at odd multiples of the fundamental series resonance frequency.

To learn more about this measurement application just download this application note.

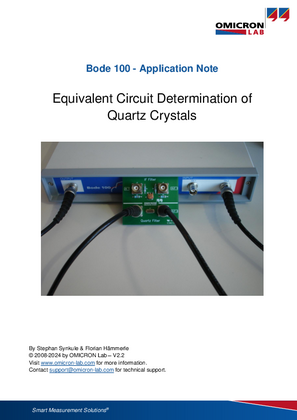

Application Note: Equivalent Circuit Analysis of Quartz Crystals V2.2

(684 KB)

Download
