The equivalent series resistance of a capacitor (ESR) is not always specified by the manufacturer. The Bode 100 with its impedance adapters offers an easy and fast way of measuring the ESR over frequency.

This application note shows how to use the Bode 100 in conjunction with the B-WIC impedance test fixture to measure the ESR of an aluminum electrolytic capacitor. The data is compared to the information available in the manufacturer's datasheet. Check out the document below to find out more.

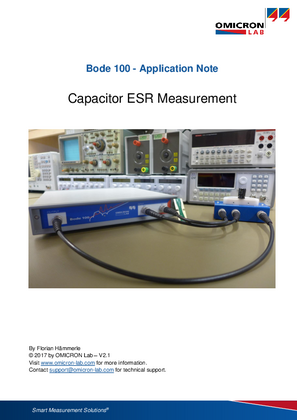

Application Note: Capacitor ESR Measurement

(894 KB)

Download

Questions & Feedback

We try to constantly improve our application notes and videos. To do so, we are happy to receive your valuable opinion on them. Therefore, please send us your comments and insights via the feedback form, which you can access via the button below.

Feedback

In this video, Florian shows how to measure the ESR of various capacitors using the B-WIC impedance test fixture and the Bode 100.
